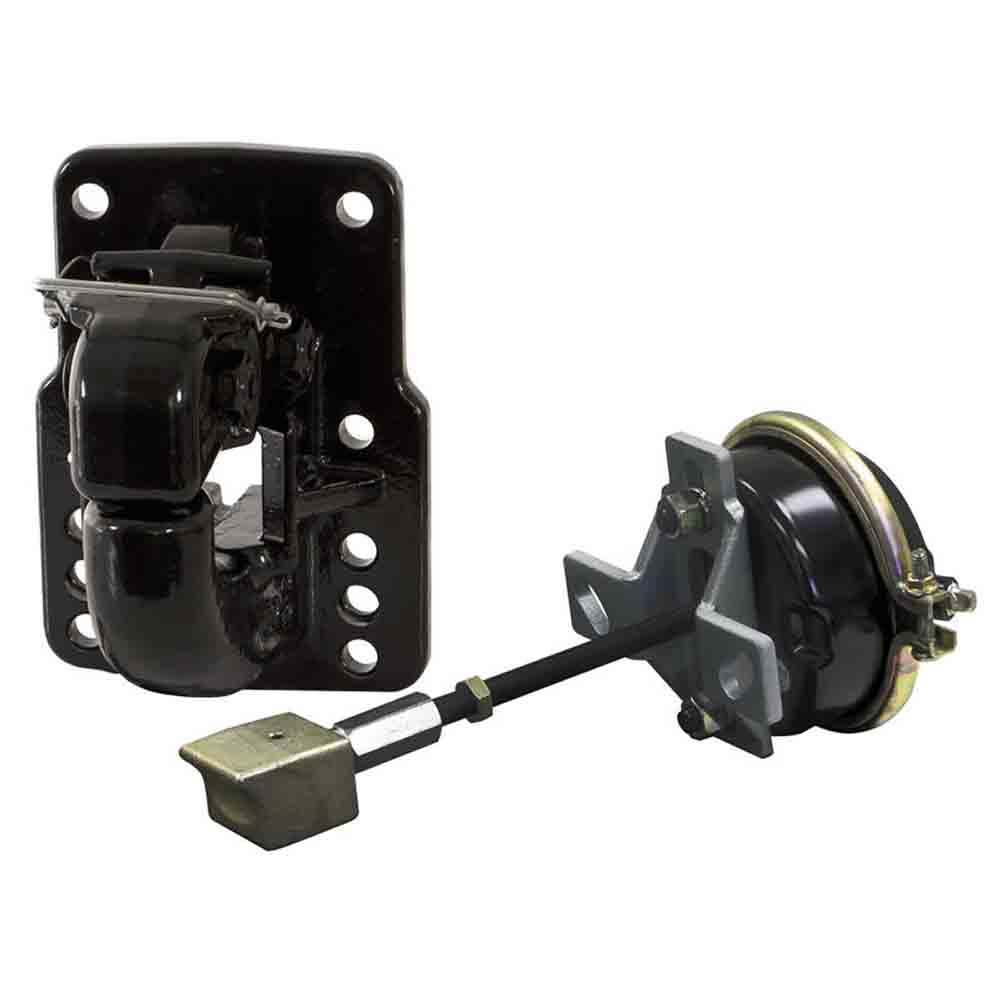

Buyers Products 50 Ton, 10 Bolt Air Compensated Pintle Hook With Air Chamber And Plunger

Name: Rigid Hitch
Address: 3301 Burnsville Pkwy, Burnsville, MN, 55337, US
Telephone: 800-624-7630
Price range: $$

Buyers

SKU

PH55AC

List Price: $668.05

$445.37

In-Stock

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

Need help with installation? Locate installers near me

The 50 Ton Air Compensated Pintle Hitch from Buyers Products cushions movement between the pintle hook and tow ring. This feature saves wear and tear on the parts, especially in sudden motion or braking situations.

The pintle hook uses the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Details

This heavy duty 50 Ton Pintle Hook is made to mount on commercial truck body hitch plates only. It cannot be used with pintle mounts which install into receiver style hitches. The plunger provides minimum clearance with maximum shock absorption. 3/4 inch mounting hardware required - sold separately.

This item requires the purchase of (2) MK-134 bolt packs for installation. See instruction sheet for mounting pattern.

Drop forged alloy steel
Mounts to commercial truck body hitch plates only
Black painted finish
See installation instructions for bolt hole configurations and mounting pattern
Drawbar eye dimensions: 2-3/8" to 3" I.D with a 1-1/4" to 1-5/8" diameter cross section
Interchanges with Holland PH400
This product can be utilized with or without the air chamber and plunger

Specifications

Specifications
Brand	Buyers
Finish	Black Powder Coat
Gross Towing Weight (WC)	100,000 lbs.
Mounting Bolt Pattern	8-7/16 inch x 5 inch
Tongue Weight	20,000 lbs.
