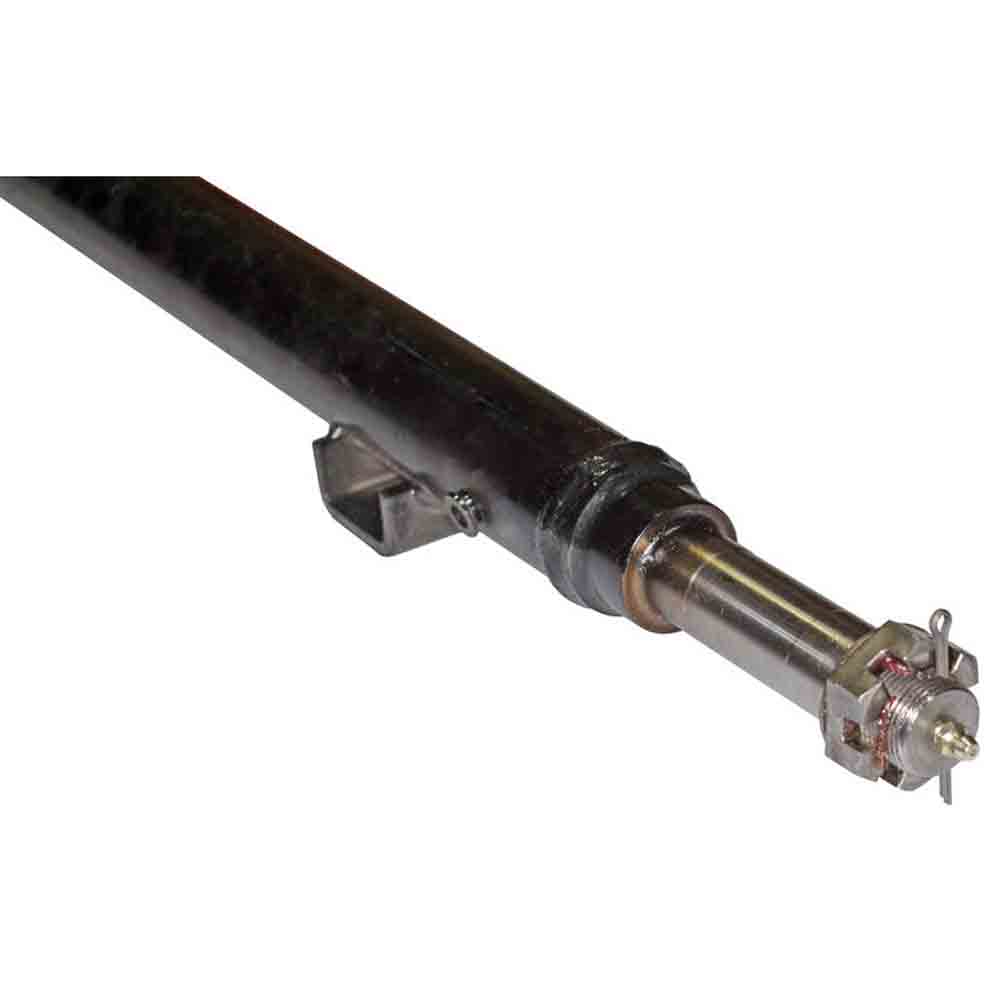

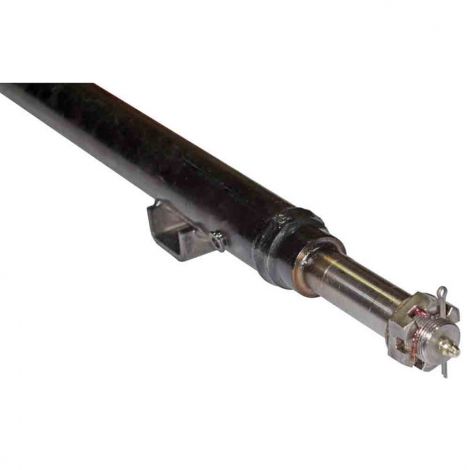

2,200 lb. Straight Axle Tube - 50 Inch Hub Face

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Details

2,200 lb. straight trailer axle tube with spindles, castle nuts and cotter pins. Axle tube is 1-3/4" diameter x 3/16" wall round tubing. This axle DOES NOT include flanges for mounting electric or hydraulic brakes. Axle is supplied with spring seats attached for mounting springs in the underslung (springs under axle) position. Springs are sold separately. Axles are manufactured with a slight camber (arch) and must be mounted with the arch at the top of the axle.

Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
1-1/16 straight spindles with castle nuts and cotter pins
Used on boat trailers, tent campers, utility and snowmobile trailers

Specifications

Specifications
Brand	Lippert
Capacity	2,200 lbs.
Mount Width	36 inch
Overall Width	54-1/2 inch
Seal Surface Diameter	1.50 inch
Spring Seats	Attached
Width At Hub Face	50 inch
