2,200 lb. Straight Axle Tube - 69 Inch Hub Face

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Details

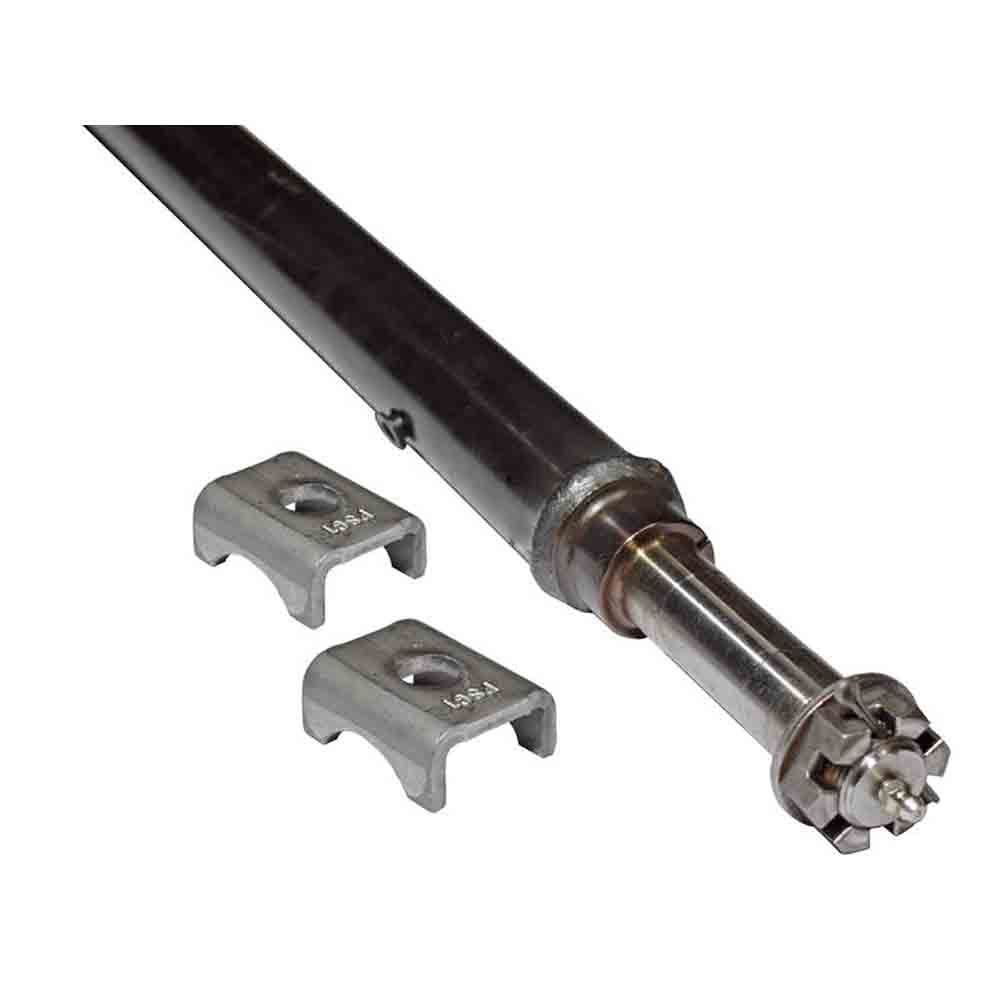

2,200 lb. straight trailer axle tube with spindles, castle nuts and cotter pins. Axle tube is 1-3/4" diameter x 3/16" wall round tubing. This axle DOES NOT include flanges for mounting electric or hydraulic brakes. May be used with 4 or 5-lug hubs, sold separately. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.

Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.

Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
Spring seats are shipped loose and must be welded to the axle to complete the installation
1-1/16 inch straight spindles with castle nuts and cotter pins
Used on boat trailers, tent campers, utility and snowmobile trailers

Specifications

Specifications
Brand	Lippert
Capacity	2,200 lbs.
Mount Width	53 to 59 inch
Overall Width	73-1/2 inch
Seal Surface Diameter	1.50 inch
Spring Seats	Loose
Width At Hub Face	69 inch
